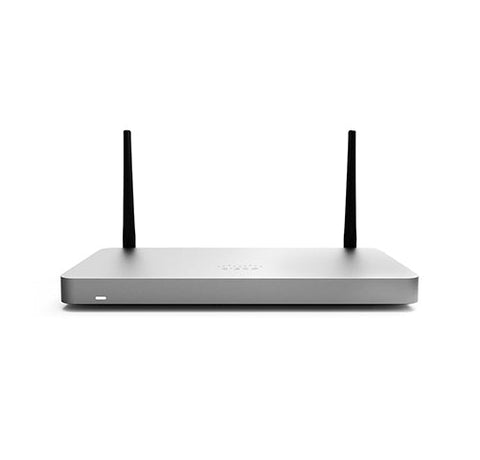

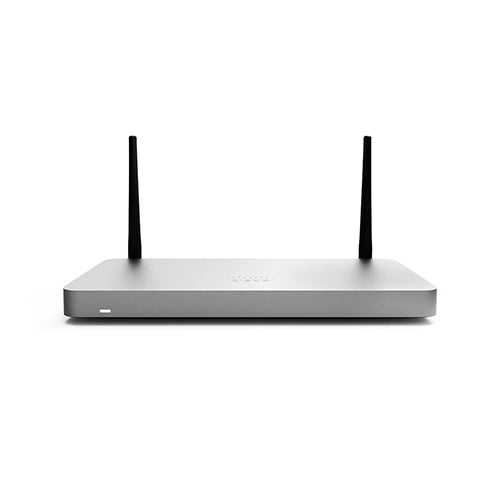

Meraki MX68CW LTE & 802.11ac Router/Security Appliance - WW


Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : MX68CW-HW-WW

IN STOCK - READY TO SHIP!

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

The Cisco Meraki MX68CW is an all-in-one small-business network solution that combines next-gen firewall security, integrated 4G LTE, Wave 2 Wi-Fi, SD-WAN, and PoE+ switching in a compact desktop chassis. Designed for small offices and an online workforce of up to 50 users, it delivers up to 700 Mb/s stateful firewall throughput while keeping deployment and day-to-day management simple through the Meraki cloud dashboard.

Use Cases

  • Primary or backup connectivity for remote sites that need always-on access via built-in Cat 6 LTE.
  • Secure edge for small offices, retail stores, clinics, and classrooms requiring next-gen firewall and Wi-Fi in one box.
  • Rapid pop-up branches, events, or construction sites where zero-touch deployment and cellular fail-over are essential.
  • Authorised reseller demo kit for proof-of-concepts across Australia.

Key Features

  • Stateful firewall throughput : ≈ 700 Mb/s; site-to-site VPN throughput : ≈ 300 Mb/s.
  • Integrated 802.11ac Wave 2 (2×2 MU-MIMO) access point supporting up to four SSIDs.
  • Built-in Cat 6 LTE modem with dual-SIM tray for carrier diversity.
  • Dual WAN (2 × GbE) plus USB for external 4G/5G fail-over.
  • Ten GbE LAN ports, including 2 × PoE+ (up to 60 W total) for powering phones, cameras, or access points.
  • Layer-7 application firewall, IPS/IDS, AMP, content filtering, and SD-WAN auto-VPN.
  • Centralised cloud management, zero-touch provisioning, and smartphone-style firmware updates.

Technical Specifications

  • Recommended users : ≤ 50 concurrent clients.
  • Firewall / VPN throughput : 700 Mb/s / 300 Mb/s.
  • Interfaces : 2 × GbE WAN, 10 × GbE LAN (2 × PoE+), 1 × USB 3.0.
  • Wireless : Dual-band 802.11a/b/g/n/ac Wave 2, 1.3 Gb/s max PHY.
  • Cellular : Cat 6 LTE (3GPP Rel 10) with global band support, 2×DL-CA.
  • Dimensions (H × W × D) : 27 × 178 × 284 mm; weight : ≈ 1.18 kg.
  • Power : 100 W AC adaptor; idle 19 W, max ≈ 89 W (incl. PoE load).
  • Operating env. : 0 – 45 °C, 5 – 95 % RH.

Comparison

Model LTE Integrated Wi-Fi PoE+ Ports Firewall
Throughput
VPN
Throughput
MX68 USB modem only 2 700 Mb/s 400 Mb/s
MX68CW Built-in Cat 6 802.11ac Wave 2 2 700 Mb/s 300 Mb/s

FAQs

Can I run the MX68CW on LTE as the primary uplink?

The embedded LTE link is designed for high-availability fail-over. It can be made active, but most deployments use it as a resilient backup path.

Does the unit support eSIM?

No—physical nano-SIMs are required. Dual trays allow two carriers for redundancy.

How many access points or phones can I power from the PoE+ ports?

The two PoE+ ports share up to 60 W, enough for two 802.3at devices or four 802.3af devices with splitters.

Is the wireless antenna removable?

No—the MX68CW uses fixed dual-purpose antennas for Wi-Fi and LTE to ensure optimal performance and regulatory compliance.

Licensing and Support

Each MX68CW requires a Meraki Enterprise or Advanced Security license. As an authorised Cisco Meraki reseller in Australia, we offer flexible 1-, 3-, 5- and 10-year license pricing bundles that include 24×7 phone support, firmware updates, and lifetime hardware replacement. Contact us for a tailored quote or comparison with other licensing tiers.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MX68CW-HW unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
