Cisco Meraki

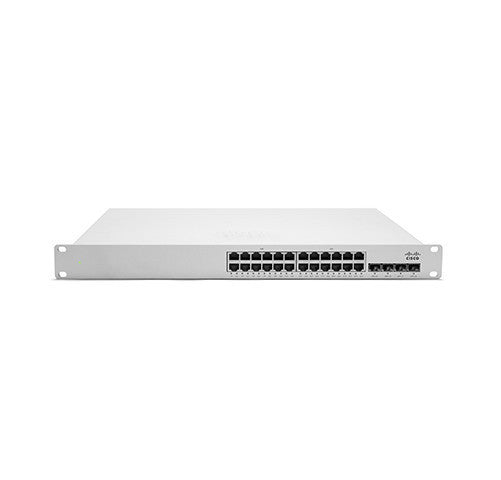

Meraki MS250-24P L3 Stacking Cloud Managed 24x GigE 370W PoE Switch
Meraki MS250-24P L3 Stacking Cloud Managed 24x GigE 370W PoE Switch
SKU:MS250-24P-HW
Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
The Cisco Meraki MS250-24P is a 24-port, cloud-managed Layer 3 Gigabit switch designed for branch offices, retail stores and other business environments that need reliable power over Ethernet, high switching throughput and simple cloud administration. As an authorised Cisco Meraki reseller in Australia, we make it easy to buy Cisco Meraki MS250-24P with the right MS License for your network. Compare it against the MS225-24P below to see which model best meets your budget, performance and redundancy requirements.
Use Cases
- Powering Wi-Fi 6/6E access points, VoIP phones and security cameras in medium-sized offices.
- Resilient retail deployments that need stacking and hot-swap PSU options to minimise downtime.
- Branch networks that want simple, cloud-based administration and automatic firmware updates.
- Australian businesses looking for an authorised reseller with local stock and competitive pricing.
Key Features
- 24 × Gigabit RJ-45 ports with PoE+ (370 W budget)
- 4 × 10 Gb SFP+ uplinks for high-speed aggregation
- 80 Gbps back-plane stacking via dedicated QSFP ports
- 128 Gbps switching capacity with Layer-3 routing (static + OSPF)
- Dual hot-swappable, field-replaceable power supplies for N+1 redundancy
- Managed entirely from the Meraki Dashboard with zero-touch provisioning
- Advanced security: 802.1X, DHCP Snooping, Dynamic ARP Inspection, IPv4/6 ACLs
- Automatic firmware & security updates, remote packet capture and detailed analytics
Technical Specifications
- Ports: 24 × 10/100/1000 Mbps (PoE+), 4 × 1/10 Gb SFP+
- PoE Budget: 370 W (802.3at)
- Switching Capacity: 128 Gbps / 95 Mpps forwarding
- Stacking Bandwidth: 80 Gbps (2 × QSFP)
- Dimensions (H × W × D): 1.72″ × 19″ × 14.89″ (44 mm × 482 mm × 378 mm)
- Weight: 4.8 kg / 10.59 lb
- Operating Temp: −5 °C to 50 °C (23 °F to 122 °F)
- Power Consumption: 15 W (idle) / 434 W (max)
- Mounting: 1U rack-mount kit included
Comparison
| Feature | MS250-24P | MS225-24P |
|---|---|---|
| Layer Capability | Layer 3 (routing with OSPF) | Layer 2 with static routing |
| PoE Budget | 370 W PoE+ | 370 W PoE+ |
| 10 Gb Uplinks | 4 × SFP+ | 4 × SFP+ |
| Switching Capacity | 128 Gbps | 128 Gbps |
| Stacking Bandwidth | 80 Gbps | 80 Gbps |
| Power Supplies | Dual hot-swap (included) | Internal PSU + optional external RPS |
| Depth | 14.89″ (378 mm) | 9.05″ (230 mm) |
| Typical Use | Branch & campus networks needing full L3 & redundancy | Cost-effective Layer 2 access switching |
FAQs
Does the MS250-24P include stacking cables?
The switch has two QSFP stacking ports; cables are sold separately so you can choose the appropriate length for your rack layout.
What MS License do I need?
Each switch requires an MS Enterprise or MS Advanced license (1, 3, 5 or 10-year term). The license unlocks cloud management, 24 × 7 enterprise support and future feature updates.
Can I mix MS250 and MS225 in the same stack?
No. All members of a physical stack must be from the same switch family. You can, however, manage different models within the same Meraki Dashboard network.
Is there fan noise in an open-plan office?
The MS250-24P uses adaptive fans. Under typical office loads it remains quiet, but it will ramp up under high PoE demand or ambient temperature.
Licensing and Support
Ordering through an authorised Cisco Meraki reseller ensures genuine hardware, access to flexible MS licensing tiers and direct, 24 × 7 Meraki Enterprise support. We ship nationwide across Australia and can bundle the switch, license and optional accessories into a single, competitive quote—making it simple to budget, deploy and scale your cloud-managed network.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS250-24P unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
