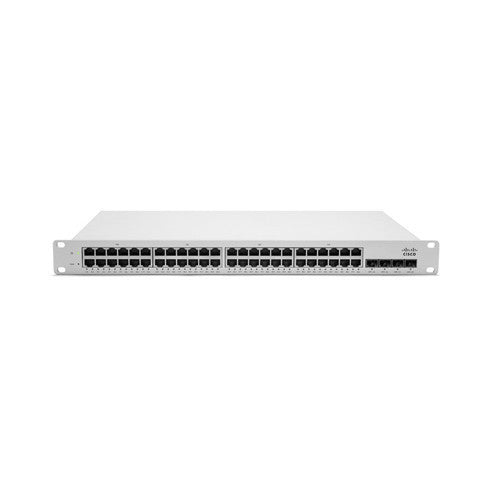

Meraki MS225-48 L2 Stacking Cloud Managed 48x GigE Switch


Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : MS225-48-HW

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

The Cisco Meraki MS225-48 is a 48-port, Gigabit Layer-2 switch that connects branch, office and retail sites to a secure, cloud-managed network.
With four 10 Gb SFP+ uplinks, 80 Gbps physical stacking and fan-free operation, it delivers quiet, high-capacity switching in a 1U form-factor — all managed through the intuitive Meraki Dashboard. Perfect for organisations that want to buy Cisco Meraki MS225-48 with an MS License from an authorised reseller in Australia and deploy it quickly without complex CLI commands.

Use Cases

  • Edge switching for small-to-medium branch offices that need future-proof 10 Gb uplinks
  • Quiet retail environments where fanless hardware is preferred
  • Stacked access layer (up to eight units) in education or campus networks
  • PoE-free zones that still require high port density and simple cloud management
  • Businesses standardising on Meraki for end-to-end visibility, security and zero-touch deployment

Key Features

  • 48 × 1 GbE RJ45 ports with auto-MDIX
  • 4 × 10 Gb SFP+ uplinks for high-speed aggregation
  • Dual dedicated stacking ports (80 Gbps bandwidth)
  • Non-blocking backplane: 176 Gbps switching capacity
  • Fanless design for silent operation in offices and classrooms
  • Virtual Stacking & remote packet capture via Meraki Dashboard
  • Layer-2 switching with static routing, DHCP relay, 802.1X, ACLs & QoS
  • Low power draw — 25 W idle / 42 W max*

Technical Specifications

  • Model: MS225-48-HW (non-PoE)
  • Ports: 48 × 1 GbE RJ45 + 4 × 10 Gb SFP+
  • Switching capacity: 176 Gbps; Forwarding rate: ≈ 131 Mpps
  • Stacking: Up to 8 switches, 80 Gbps stack bandwidth
  • Dimensions (H × W × D): 1.72 " × 19.08 " × 13.39 " (4.38 × 48.46 × 34 cm)
  • Weight: 8.78 lb / 3.98 kg
  • Power supply: Fixed internal; external Cisco RPS-2300 optional for redundancy
  • Operating environment: –5 °C to 50 °C, 5-95 % RH (non-condensing)
  • Fanless & acoustic: 0 dB for quiet deployments
  • Compliance: RCM (AU/NZ), CE, FCC, CSA-US, RoHS

Comparison

Model Uplinks Switching Capacity PoE Budget Routing Ideal Fit
MS210-48 4 × 1 Gb SFP 128 Gbps Up to 740 W (FP) Static Entry-level branch
MS225-48 (this model) 4 × 10 Gb SFP+ 176 Gbps N/A (non-PoE) Static Performance branch / SMB campus
MS250-48 4 × 10 Gb SFP+ 176 Gbps Up to 740 W (FP) Static + Dynamic Advanced campus with L3 needs

FAQs

Does the MS225-48 support Power over Ethernet?

The standard MS225-48-HW is a non-PoE model. If you need PoE/PoE+, choose the MS225-48LP (370 W) or MS225-48FP (740 W) versions.

How many switches can I stack?

Up to eight MS225 or compatible MS210 units can form one physical stack with 80 Gbps of dedicated stack bandwidth.

What license do I need?

Meraki switches require a matching MS Enterprise Subscription. The MS225-48 falls under the “MS200 Large” SKU tier — simply pair the hardware with the corresponding term (1, 3, 5, 7 or 10 years) for cloud management and support.

Is the switch noisy?

No. The MS225-48 is completely fanless, making it suitable for deskside racks, classrooms or quiet retail counters.

Licensing and Support

Each MS225-48 includes a limited lifetime hardware warranty with next-day advance replacement and is activated by an MS Enterprise license that bundles firmware updates, 24 × 7 phone support and cloud management.
Buying through our authorised reseller channel ensures genuine Cisco Meraki hardware, local Australian pricing and direct access to pre-sales design assistance and post-deployment support.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS225-48 unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki MS225 Family Datasheet
