Cisco Meraki

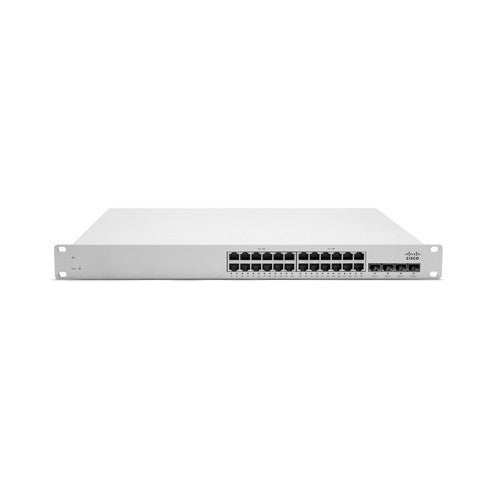

Meraki MS225-24 L2 Stacking Cloud Managed 24x GigE Switch
Meraki MS225-24 L2 Stacking Cloud Managed 24x GigE Switch
SKU:MS225-24-HW
Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
Looking to buy Cisco Meraki MS225-24 for your Australian business? This cloud-managed, 24-port Layer 2 access switch delivers enterprise-grade performance—128 Gbps switching capacity, four 10 Gb SFP+ uplinks, and 80 Gbps physical stacking—without the noise of moving parts. Ideal for modern office, retail and branch deployments, the MS225-24 pairs zero-touch provisioning with a simple MS License to keep your network secure, scalable and easy to run.
Use Cases
- Edge switching for small-to-mid-size corporate offices needing quiet, fan-free hardware
- Retail outlets requiring reliable PoE-free access switching with 10 Gbps uplinks to the core
- Education or hospitality sites expanding Wi-Fi 6/6E where 1 Gb access plus 10 Gb backhaul is essential
- Cost-effective stack member for larger MS210/MS225 access stacks (up to eight switches)
Key Features
- 100 % cloud-managed via the Meraki Dashboard—configure, monitor and troubleshoot from anywhere
- Automatic firmware updates & zero-touch provisioning
- 4 × 1/10 Gb SFP+ uplinks for high-speed aggregation
- Dual dedicated stack ports providing 80 Gbps for hit-free redundancy
- Comprehensive security: 802.1X, Dynamic ARP Inspection, DHCP Snooping & ACLs
- Static Layer 3 routing for inter-VLAN connectivity without a router
- Optional Cisco RPS-2300 for redundant power
- Fanless metal chassis—perfect for deskside, classroom or store environments
Technical Specifications
- Access ports: 24 × 10/100/1000 BASE-T RJ45
- Uplink ports: 4 × SFP+ (1/10 Gbps)
- Switching capacity: 128 Gbps
- Stacking bandwidth: 80 Gbps (two QSFP ports), stack up to eight MS210/MS225 units
- Routing: Layer 2 with static Layer 3 routing
- Power: 15 W idle / 24 W max, fixed internal PSU, external RPS option
- Cooling: Fan-free
- Dimensions (H × W × D): 1.72 ″ × 19 ″ × 9.05 ″ (4.38 × 48.46 × 23 cm)
- Weight: 2.73 kg (6.03 lb)
- Operating temp: –5 °C to 50 °C; 5 %-95 % RH
- Mounting: 1U rack-mount kit included
Comparison
| Model | Access Ports | PoE Budget | 10 Gb Uplinks | Switching Capacity | Stacking Bandwidth |
|---|---|---|---|---|---|
| MS225-24 (this model) | 24 × 1 GbE | N/A | 4 | 128 Gbps | 80 Gbps |
| MS225-24P | 24 × 1 GbE | 370 W | 4 | 128 Gbps | 80 Gbps |
| MS210-24P | 24 × 1 GbE | 370 W | 0 | 128 Gbps | 80 Gbps |
FAQs
Do I need a licence to operate the switch?
Yes. Every Cisco Meraki switch requires an MS Enterprise License (1, 3, 5 or 7 years) that covers cloud management, feature updates and 24×7 support.
Can I stack the MS225-24 with other Meraki models?
Physical stacking is supported with MS225 and MS210 series switches only; cross-family stacking with MS250/MS350 is not available. A single stack can include up to eight units.
Is the MS225-24 suitable for a quiet office?
Absolutely—the unit is completely fanless, so it operates silently even at full load.
How do I buy the MS225-24 in Australia?
Purchase through an authorised Cisco Meraki reseller for local inventory, AUD pricing and GST-compliant invoicing. Contact us for current pricing and availability.
Licensing and Support
The MS225-24 is backed by Cisco Meraki’s 24×7 enterprise support, advanced RMA and ongoing feature releases delivered through the Dashboard. Simply apply or renew your MS License term to keep your switch, stack and entire cloud-managed network running smoothly for years to come.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS225-24 unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
