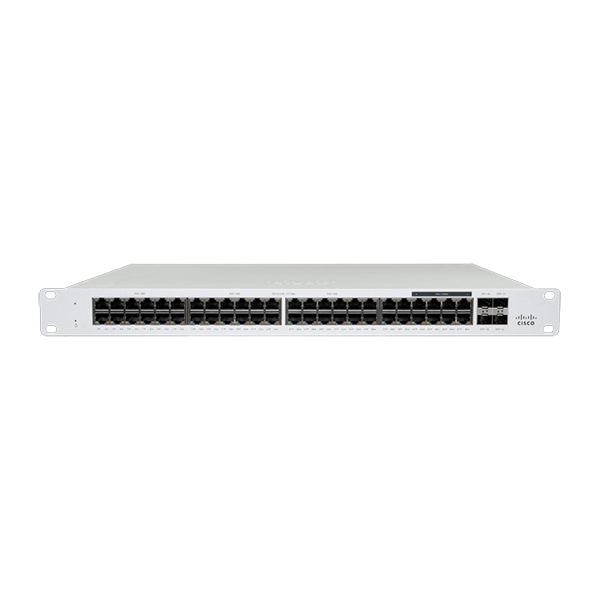

Meraki MS130-48X Cloud Mgd. 40GE + 8x(2.5GE) 740W PoE Switch
Meraki MS130-48X Cloud Mgd. 40GE + 8x(2.5GE) 740W PoE Switch
SKU:MS130-48X-HW
Note: License must be purchased with product.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
The Cisco Meraki MS130-48X-HW is a cloud-managed Layer 2 access switch with forty-eight multi-gigabit ports, four 10 Gb SFP+ uplinks and a generous 740 W PoE budget. Designed for modern business, retail and office networks across Australia, it lets you buy a Cisco Meraki switch and MS License that scales easily while keeping management simple from the Meraki Dashboard.
Use Cases
- High-density Wi-Fi 6/6E or Wi-Fi 7 access-point aggregation in corporate offices
- Retail floor networks needing reliable PoE for POS terminals, cameras and signage
- Layer-2 campus edge deployments that require future-proof 2.5 GbE access
- Branch locations seeking zero-touch provisioning through Meraki cloud management
Key Features
- Cloud-managed via the intuitive Meraki Dashboard with automatic firmware updates
- 48 × PoE/PoE+ 10/100/1000 or 2.5 GbE ports (802.3bt; up to 30 W each)
- 4 × 10 Gb SFP+ uplinks for high-speed aggregation or redundant stacking
- Remote packet capture, SNMP, Syslog and IPv4/IPv6 ACL support
- 802.1Q VLAN tagging, DHCP snooping and 802.1X authentication options
- Fan-assisted, fixed internal power supply for quiet operation in racks
Technical Specifications
- Switching capacity: 200 Gbps
- Forwarding rate: up to 148 Mpps
- PoE budget: 740 W total (30 W per port)
- Interfaces: 40 × 1 GbE RJ-45, 8 × 2.5 GbE RJ-45, 4 × 10 Gb SFP+
- Management port: 1 × out-of-band Ethernet
- Power input: 100–240 V AC, 50-60 Hz (12–6 A)
- Max power draw: 808 W (60 W idle)
- Dimensions (H × W × D): 1.73 × 17.32 × 13.4 in (4.4 × 44 × 34 cm)
- Weight: 12.59 lb (5.71 kg)
- Environment: 0 – 45 °C operating; 5 – 95 % humidity
- MTBF: ≈ 396,500 hours
Comparison
| Model | Access Ports | Uplinks | PoE Budget | Switching Capacity | Best for |
|---|---|---|---|---|---|
| MS130-48X-HW | 40 × 1 GbE + 8 × 2.5 GbE | 4 × 10 Gb SFP+ | 740 W | 200 Gbps | High-density PoE & multi-gig |
| MS130-48-HW | 48 × 1 GbE | 4 × 1 Gb SFP | — | 104 Gbps | Non-PoE edge switching |
| MS130-24X-HW | 18 × 1 GbE + 6 × 2.5 GbE | 4 × 10 Gb SFP+ | 370 W | 146 Gbps | Smaller sites needing multi-gig |
FAQs
Does the MS130-48X require a license?
Yes. Choose either an Enterprise or Advanced MS License term (1, 3, 5, 7 or 10 years). Licensing unlocks cloud management and 24 × 7 support.
Can I mix Enterprise and Advanced licenses in one organisation?
If you use co-term licensing, all MS130 switches must share the same tier. Per-device licensing allows mixing, but certain advanced features need organisation-wide Advanced licensing.
How much PoE power is available per port?
Each PoE-enabled port supports up to 30 W (802.3bt Type 3), perfect for Wi-Fi access points, IP cameras and VoIP phones.
Is stacking supported?
Physical backplane stacking is not available, but you can build resilient uplink topologies and manage multiple switches virtually through the Meraki Dashboard.
Licensing and Support
Purchase your MS130-48X-HW from an authorised Cisco Meraki reseller in Australia and bundle the appropriate MS License term for seamless cloud-managed networking. All licences include firmware updates, 24 × 7 enterprise support and advanced hardware replacement, ensuring your business network stays secure, reliable and easy to administer.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS130-48X unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
