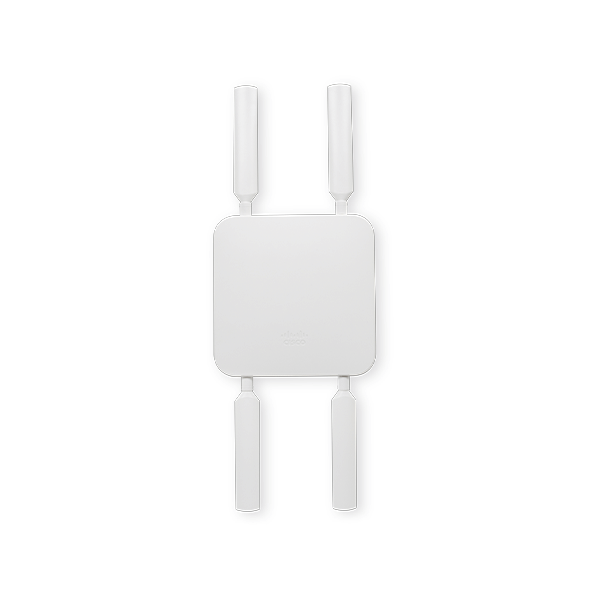

Meraki MG51E Cellular Gateway External Antennas
Meraki MG51E Cellular Gateway External Antennas
SKU:MG51E-HW
IN STOCK - READY TO SHIP!
Note: License must be purchased with product, power injector to be ordered separately if required.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
The Cisco Meraki MG51E is a cloud-managed 5G cellular gateway that lets any business buy Cisco Meraki MG51E and stand up secure, high-speed wireless WAN links in minutes—ideal for office, retail, or outdoor sites across Australia. With dual-SIM resilience, 2.5 GbE ports, and rugged IP67 design, it delivers fibre-like performance where cabling is slow, costly, or unavailable, all managed from the intuitive Meraki Dashboard through an authorised reseller.
Use Cases
- Primary 5G uplink for pop-up stores, branch offices, constructions sites and remote campuses.
- Secondary WAN or SD-WAN path to safeguard business uptime during wired outages.
- Outdoor or harsh-environment connectivity (IP67) for kiosks, IoT, CCTV, traffic management and more.
- High-availability designs—two MX security appliances can share the same MG51E via its twin LAN ports.
Key Features
- 5G Sub-6 GHz with LTE Cat 20 fallback — up to 2 Gbps down / 300 Mbps up.
- Dual Nano SIM slots with automatic fail-over for carrier diversity.
- Two 2.5 GbE ports (1 LAN, 1 LAN/WAN) for flexible network topologies.
- PoE+ (802.3at) or 12 V DC power, plus IP67-rated enclosure for indoor or outdoor installs.
- Cisco Meraki cloud-managed dashboard with APIs, zero-touch provisioning and remote diagnostics.
- Compact 173 × 173 × 36.5 mm footprint; MG51E ships with four external dipole antennas and mounting plate.
- Certified for Telstra, Optus and other major carriers—ready for quick deployment across Australia.
Technical Specifications
- Cellular modem: 5G NSA Sub-6 GHz + LTE Cat 20 (Quectel FN980)
- Ports: 2 × 2.5 GbE RJ-45 (one dedicated LAN, one convertible LAN/WAN)
- SIM: Dual Nano (4FF) with auto-SIM fail-over
- Data rates (passthrough): 2 Gbps DL / 300 Mbps UL; (NAT) 1.5 Gbps DL / 300 Mbps UL
- Dimensions / Weight: 173 × 173 × 36.5 mm, 717 g (with antennas)
- Power: 12 V DC or 802.3at PoE+, 16 W max draw
- Operating temp: –40 °C to +50 °C; 5–95 % RH; IP67 rated
- MTBF: 1,663,492 hours @ 25 °C
- Regulatory: PTCRB, GCF, FCC, RCM & carrier certifications (Telstra, Optus, Verizon, AT&T, etc.)
Comparison
| Specification | MG51E (This model) |
MG41E |
|---|---|---|
| Wireless Tech | 5G Sub-6 GHz + Cat 20 LTE | LTE Advanced Cat 18 |
| Max Throughput (DL/UL) | 2 Gbps / 300 Mbps | 1.2 Gbps / 150 Mbps |
| Ethernet Ports | 2 × 2.5 GbE | 2 × 1 GbE |
| PoE Class | PoE+ | PoE |
| External Antennas | 4 (included) | 4 |
| Carrier Aggregation | DL 7CA / UL 2CA | DL 5CA / UL 2CA |
| Dimensions (mm) | 173 × 173 × 36.5 | 168 × 168 × 35 |
FAQs
What is the difference between the MG51 and MG51E?
The MG51 uses internal antennas; the MG51E ships with four external dipole antennas for stronger reception in challenging sites. Both share identical electronics and performance.
Can I use the MG51E as my primary internet link?
Absolutely. With 5G speeds up to 2 Gbps and dual-SIM fail-over, many Australian organisations run the MG51E as their day-one primary link, or as a high-availability SD-WAN circuit.
Which SIM size does the gateway accept?
Dual Nano (4FF) SIM trays are provided—simply load the service from your preferred carrier.
Is the MG51E certified for Telstra and Optus?
Yes. The gateway carries RCM and carrier approvals for Telstra, Optus and other major networks, so it will register immediately on their 5G/LTE bands.
Does it support PoE power?
Yes—802.3at PoE+ is fully supported. Alternatively, power the unit with the optional 12 V DC adapter.
Licensing and Support
Every MG51E requires an MG Enterprise licence (1-, 3-, 5-, 7- or 10-year SKUs) that bundles cloud management, feature updates and 24×7 support. Hardware is protected by Cisco Meraki’s lifetime warranty with next-day advanced replacement—meaning your investment in business-grade 5G connectivity stays protected long-term. Contact our authorised reseller team for comparison pricing, demo units and deployment advice across Australia.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MG51E unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
