Cisco Wireless 9176D1 AP (W7,3 radio,3 band 4x4,UWB),Global w/MERAKI


Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : CW9176D1-RTG

IN STOCK - READY TO SHIP!

Note: License must be purchased with product / power supply or power injector to be ordered separately if required.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

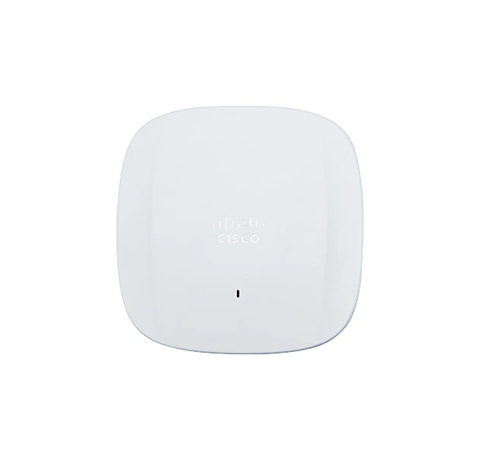

Looking to buy Cisco Meraki CW9176D1 AP for your organisation? This cloud-managed, Wi-Fi 7 access point couples a directional high-gain antenna with tri-radio 4×4 MIMO, pushing an impressive aggregate 18 Gbps wireless throughput. Ideal for Australian offices, retail spaces, warehouses and other indoor venues with high ceilings, the CW9176D1 delivers robust, low-latency connectivity while giving you the freedom to swap between Meraki Dashboard and on-prem Catalyst 9800 control—no new hardware required. As an authorised Cisco Meraki reseller, we offer competitive pricing, fast shipping within Australia and full licensing support.

Use Cases

  • Large indoor spaces (auditoriums, logistics hubs, exhibition halls) needing focused, long-reach coverage.
  • Retail chains rolling out next-gen business Wi-Fi with centralised cloud visibility.
  • Corporate offices migrating to Wi-Fi 7 for VR collaboration, 4K video and dense client environments.
  • Hybrid estates that may start on Catalyst controllers and later move to full Meraki cloud management.

Key Features

  • Tri-radio 4×4:4 design (2.4 GHz, 5 GHz, 6 GHz) with Wi-Fi 7 / 802.11be Multi-Link Operation (MLO).
  • Dedicated fourth radio for 24/7 Air Marshal WIDS/WIPS & spectrum analytics.
  • Integrated IoT & BLE 5.3 radio plus built-in GPS for location services.
  • Single 10 GbE mGig uplink with 802.3bt PoE; runs in reduced mode on 802.3at.
  • Automatic cloud RF optimisation and firmware updates via Meraki Dashboard.
  • Enterprise-grade security: WPA3, 802.1X, Layer-7 firewall, PCI reports.
  • Directional antenna (up to 8 dBi) removes need for externals and minimises bleed into adjacent areas.

Technical Specifications

  • Radios: 2.4 GHz, 5 GHz, 6 GHz client access; separate WIDS/WIPS; IoT BLE 5.3.
  • Max data rate: 18 Gbps tri-radio aggregate (11.52 Gbps @ 6 GHz).
  • Antenna gain: 7 dBi (2.4 GHz), 7–8 dBi (5/6 GHz) directional beam (~70–80° H/V).
  • Ethernet: 1 × 100 M/1 G/2.5 G/5 G/10 G RJ-45.
  • PoE budget: 39 W (802.3bt); 25.5 W (802.3at); 13.95 W (802.3af low-power).
  • Environmental: 0 – 50 °C operating, 10 – 90 % RH; plenum-rated.
  • Dimensions / weight: 241 × 241 × 51 mm, 1.56 kg.
  • Compliance: AS/NZS 4268, CISPR 32 Class B, Wi-Fi 7 certification.

Comparison

Feature CW9176D1 (Directional) CW9176I (Omni)
Antenna Integrated 7–8 dBi directional panel Integrated 5–6 dBi omnidirectional
Deployment height High ceilings, focused zones Standard ceilings, general coverage
Ethernet 10 GbE mGig 10 GbE mGig
PoE (max) 39 W (bt) 39 W (bt)
Weight 1.56 kg 1.56 kg
Typical venue Warehouses, arenas Offices, classrooms

All values taken from Cisco documentation; specifications may change without notice.

FAQs

Do I need a licence to run the CW9176D1?

Yes. Every Meraki access point requires an active cloud management licence. Choose between 1, 3, 5, 7 or 10-year terms.

Can I swap from on-prem Catalyst control to the Meraki cloud later?

Absolutely. The CW9176 Series lets you migrate between Catalyst 9800 WLC and Meraki Dashboard without replacing hardware.

What mounting hardware is included?

The box ships with a universal bracket suitable for ceiling tiles, walls and junction boxes, plus an integrated bubble level for precise alignment.

Is the AP certified for use in Australia?

Yes – it meets AS/NZS 4268 and CISPR 32 Class B requirements, ensuring compliance with local radio and EMI standards.

Licensing and Support

Every Cisco Meraki CW9176D1 AP must be paired with a corresponding cloud licence, which unlocks 24 × 7 enterprise support, automatic firmware updates and advanced analytics. Hardware is covered by Cisco’s lifetime warranty with next-business-day replacement, and Australian customers enjoy local RMA logistics through our authorised reseller channel. Contact us for tailored bundles that combine hardware, licensing and installation services at competitive rates.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single CW9176D1 unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki CW9176D1 Datasheet (pdf)

 Cisco Meraki MR Series Datasheet (pdf)
