C9300X 2-port 40G/100G SFP+ Network Module, w/MERAKI

$2,516.00 AUD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-NM-2C-M

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

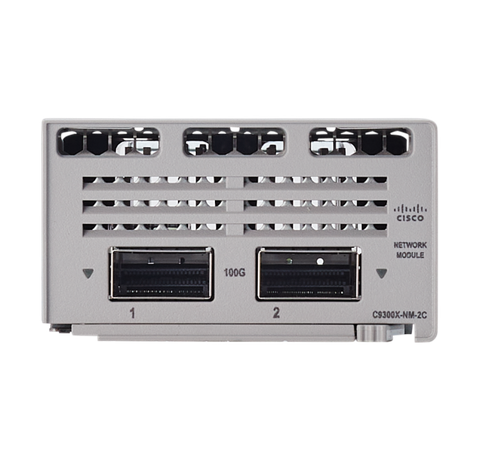

The Cisco Meraki C9300X-NM-2C-M is a hot-swappable uplink module that adds two high-speed QSFP28 ports—each capable of 40 GbE today and 100 GbE with IOS-XE 17.15+—to any Catalyst 9300X switch. It’s the simplest way to future-proof 24- or 48-port campus access switches, delivering lightning-fast aggregation for cloud-managed business, office, and retail networks across Australia. As an authorised reseller we make it easy to buy Cisco Meraki C9300X modules with clear pricing, licensing, and local support.:contentReference[oaicite:0]{index=0}

Use Cases

100 GbE uplinks from stacked 48-port access switches to distribution or core layers
High-density Wi-Fi 6/6E backhaul in busy corporate offices
Retail head-ends that need more bandwidth for POS, CCTV, and IoT traffic
Data-centre top-of-rack aggregation for hybrid-cloud workloads

Key Features

Dual QSFP28 ports – 40 G today, 100 G ready
200 Gbps total bandwidth (full-duplex)
Hot-swappable without interrupting PoE on access ports
Dashboard-managed – zero-touch visibility and firmware updates
Standards-based optics – supports Cisco or Meraki-branded transceivers
Future-proof licensing – works with Enterprise or Advanced Catalyst 9300-M licences

Technical Specifications

Model SKU: C9300X-NM-2C-M
Ports: 2 × QSFP28 (40G/100G)
Port speeds: 40 Gbit/s with CS17 firmware; 40 G/100 Gbit/s with IOS-XE 17.15+
Aggregate throughput: Up to 200 Gbit/s full-duplex
Compatibility: All Catalyst 9300X switch models
Form factor: Front-slot network module, tool-less install
Operating temperature: -5 °C to 45 °C (derives from host switch):contentReference[oaicite:1]{index=1}
Regulatory: Complies with FCC Class A, ICES-003 Class A, CE, RCM & RoHS
Warranty: Limited lifetime hardware, next-business-day advance replacement

Comparison

Module	Ports / Type	Max Speed per Port	Total Bandwidth	Ideal Use
C9300X-NM-2C-M	2 × QSFP28	100 GbE	200 Gbps	Core/aggregation uplinks
C9300X-NM-8Y-M	8 × SFP28	25 GbE	200 Gbps	Server or Wi-Fi 6E uplinks
C9300X-NM-2Q-M	2 × QSFP+	40 GbE	80 Gbps	Legacy 40 G aggregation

FAQs

Will this module work in non-Meraki Catalyst 9300X switches?

Yes. Catalyst 9300X hardware can run either classic IOS-XE or the Meraki Dashboard firmware. The C9300X-NM-2C-M is supported in both personas.

Do I need new licences when adding the module?

No. Licensing is tied to the switch, not the uplink module. Your existing Catalyst 9300-M Enterprise or Advanced licence remains valid.

How many modules can a switch take?

Each 9300X chassis has one network-module slot, so you can install one C9300X-NM-2C-M (or another compatible module) per switch.

What optics are supported?

The QSFP28 cages accept Cisco or Meraki 40 G and 100 G transceivers such as MA-QSFP-40G-SR-BD or MA-QSFP-100G-SR4.

Which software version enables 100 G operation?

IOS-XE 17.15 or later (or the equivalent Meraki CS firmware) is required to unlock 100 Gbps line-rate on both ports.:contentReference[oaicite:2]{index=2}

Licensing and Support

Every Catalyst 9300X switch needs an active Catalyst 9300-M licence—choose Enterprise for core switching or Advanced for Adaptive Policy, NetFlow (IPFIX) and advanced analytics. Licences are available in 1-, 3-, 5-, 7- and 10-year terms and include 24 × 7 Meraki cloud support, lifetime hardware warranty, and next-business-day advance replacement through our Australian logistics hubs.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-NM-2C-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
