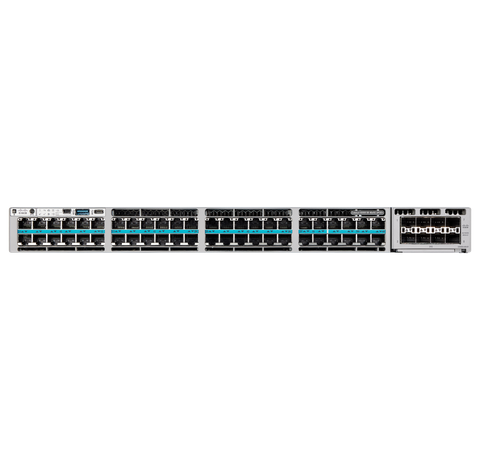

C9300X 48-port, 8xmGig+40x5G UPOE+, 1100wac PS, w/MERAKI

$13,443.00 AUD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-48HXN-M

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

Buy the Cisco Meraki Catalyst C9300X-48HXN-M to give your business, office or retail network a cloud-managed, 48-port multigigabit backbone. This Australia-ready authorised-reseller listing highlights unmatched 5 G/10 G access speeds, 90 W UPoE+ power, and 1 Tbps stacking—delivering high bandwidth and rock-solid resiliency for modern Wi-Fi 6/6E workloads while simplifying operations through the Meraki dashboard.

Use Cases

High-density offices migrating to Wi-Fi 6/6E needing 5 G/10 G wired uplinks for every access point.
Retail locations requiring always-on PoE++ for cameras, digital signage and PoS terminals.
Campus networks that want cloud-managed visibility, rapid troubleshooting and zero-touch provisioning.
Distributed enterprises seeking StackPower rings for simplified power pooling across wiring closets.

Key Features

48× multigigabit RJ-45 ports (40× 5 G + 8× 10 G) with 90 W UPoE+ on every port.
Dual modular uplink slots supporting 100 G/40 G QSFP28 or 25 G/10 G SFP28 modules.
1 Tbps physical stacking (back-compatible 480 G) for up to eight switches.
Adaptive Policy & Group Policy for intent-based segmentation without complex ACLs.
StackPower ring—share power budgets and add N+1 PSU resiliency across up to four switches.
Enterprise-class Layer 3 routing, OSPF, DHCP server/relay and advanced QoS.
Energy-efficient hardware with –5 °C to 45 °C operating range and hot-swap fans/PSUs.
Meraki cloud dashboard for zero-touch deployment, firmware scheduling and deep analytics.

Technical Specifications

Switching capacity: 2 Tbps; forwarding rate 1488 Mpps.
Stacking bandwidth: 1 Tbps (physical); unlimited virtual stacking in dashboard.
PoE budget: 690 W with default 1100 W AC PSU; up to 1790 W with secondary PSU (2590 W with 1900 W PSU).
Dimensions (H×W×D): 1.73 in × 17.5 in × 20.63 in (4.4×44.5×52.4 cm).
Weight: 14.2 lb (6.44 kg).
Operating environment: –5 °C to 45 °C; 5 %–90 % RH non-condensing.
Power supply: 1× PWR-C1-1100WAC-P-M included (hot-swap, 100/240 V).
Warranty: Limited lifetime hardware replacement, next-business-day advance.
Regulatory: FCC Class A, CE, RCM, RoHS.

Comparison

Model	Access Ports	PoE Capability	Switching Capacity	Ideal Fit
C9300X-48HXN-M	40× 5 G + 8× 10 G mGig	90 W UPoE+, 690 W base	2 Tbps	Mixed 5 G/10 G edge with high PoE
C9300X-48HX-M	48× 10 G mGig	90 W UPoE+, 590 W base	2 Tbps	Full 10 G edge, PoE++
C9300X-48TX-M	48× 10 G mGig	Data-only (no PoE)	2 Tbps	High-throughput non-PoE environments

FAQs

What licences do I need?

You choose either Enterprise or Advanced Catalyst 9300-M subscription (1, 3, 5, 7, 10-year terms). Advanced unlocks Adaptive Policy and NetFlow analytics.

Can I stack this switch with other Catalyst 9300X models?

Yes. You can physically stack up to eight Catalyst 9300X-M units (1 Tbps backplane) or virtually stack thousands via the Meraki dashboard.

Does it work with my existing Cisco optics?

The modular uplink bays accept Cisco QSFP28 and SFP28 modules. Refer to the Meraki SFP datasheet for the full approved list.

How is the 48HXN-M different from the 48HX-M?

48HXN-M offers a mix of 5 G and 10 G ports (ideal for Wi-Fi 6/6E APs) while 48HX-M provides 48 full 10 G ports.

Where can I buy it in Australia?

Purchase through an authorised Cisco Meraki reseller for local pricing, fulfilment and support across Australia.

Licensing and Support

Every C9300X-48HXN-M requires a cloud licence (Enterprise or Advanced). Licensing bundles hardware warranty, 24×7 Meraki TAC, ongoing feature updates and dashboard access—so your switch always runs the latest secure software without extra maintenance fees.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-48HX-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
