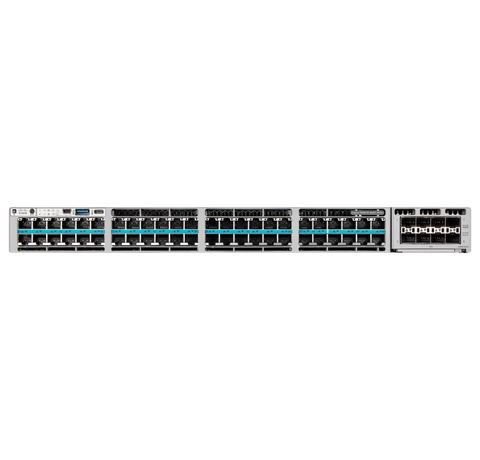

C9300X 48-port mGig UPoE+, 1100wac PS, w/MERAKI

$14,734.00 AUD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-48HX-M

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

Buy the Cisco Meraki C9300X-48HX-M to give your business, office or retail network a cloud-managed, 48-port multigigabit switch with 90 W UPOE+, dual 1 Tbps stacking ports and modular 10 / 25 / 40 / 100 GbE uplinks. Designed for Australian authorised-reseller supply, it merges Catalyst performance with the intuitive Meraki Dashboard for swift deployment, simplified operations and flexible C9300X licensing options. :contentReference[oaicite:0]{index=0}

Use Cases

High-density Wi-Fi 6/6E or Wi-Fi 7 access-point backhaul in corporate campuses
Power-hungry retail PoS endpoints, digital signage and IoT sensors needing 90 W UPOE+
Edge aggregation for 10 GbE-enabled workstations, media studios or lab environments
Branch stacking with StackPower to share power budgets and simplify UPS planning
Schools and healthcare sites requiring role-based micro-segmentation via Adaptive Policy

Key Features

48 × 10 G Multigigabit RJ-45 ports with 90 W UPOE+ on every interface (36 ports at 90 W without StackPower, 32 with StackPower) :contentReference[oaicite:1]{index=1}
Two modular uplink slots supporting 2 × 40/100 G QSFP28 or 8 × 25 G SFP28 modules :contentReference[oaicite:2]{index=2}
Dual 1 Tbps hardware stacking ports; stack up to eight switches for unified management :contentReference[oaicite:3]{index=3}
Cloud-managed through Meraki Dashboard with zero-touch provisioning and granular analytics :contentReference[oaicite:4]{index=4}
Layer-3 routing (static & OSPF), VRRP warm-spare, DHCP server/relay and multicast PIM-SM
Adaptive Policy for intent-based segmentation plus extensive 802.1X, ACL and Secure Connect options
Hot-swap 1100 W AC PSU (590 W PoE); add a second or 1900 W supply for up to 2.49 kW PoE budget :contentReference[oaicite:5]{index=5}

Technical Specifications

Model: C9300X-48HX-M (cloud-managed persona)
Data Ports: 48 × 1/2.5/5/10 GbE RJ-45 (auto-negotiating)
Uplinks: 2 × module bays (choose QSFP28 40/100 G or SFP28 1/10/25 G) :contentReference[oaicite:6]{index=6}
Stacking: Dual 1 Tbps ports, up to 8-member stack
Management: 1 × dedicated RJ-45 out-of-band port
PoE Budget: 590 W (single 1100 W PSU) / 1 690 W (with second 1100 W) / 2 490 W (with 1900 W) :contentReference[oaicite:7]{index=7}
Dimensions (H × W × D): 1.73 ″ × 17.5 ″ × 22.03 ″ (44 × 445 × 559 mm) :contentReference[oaicite:8]{index=8}
Weight: 6.62 kg / 14.6 lb with default PSU :contentReference[oaicite:9]{index=9}
Operating Temp: –5 °C to 45 °C, 5 – 90 % RH
MTBF: 185 420 h @ 25 °C :contentReference[oaicite:10]{index=10}
Warranty: Limited lifetime hardware replacement, next-business-day advance RMA

Comparison

Feature	C9300X-48HX-M	C9300X-48TX-M	C9300X-24HX-M
User Ports	48 × 10 G mGig UPOE+	48 × 10 G mGig (no PoE)	24 × 10 G mGig UPOE+
Max PoE Budget*	2 490 W	—	2 160 W
Default PSU	1100 W AC	715 W AC	1100 W AC
Dimensions (W × D)	17.5 ″ × 22.0 ″	17.5 ″ × 22.0 ″	17.5 ″ × 20.6 ″
Stacking Bandwidth	1 Tbps on all models

*Budget shown with optional 1900 W secondary PSU. Data source: Cisco Meraki datasheet. :contentReference[oaicite:11]{index=11}

FAQs

Do I need a licence to run the switch?

Yes. Every Catalyst Meraki C9300X switch requires either an Enterprise or Advanced C9300X -M licence (1, 3, 5, 7 or 10 year term). Mix-and-match between tiers is only allowed in Per-Device LIC mode. :contentReference[oaicite:12]{index=12}

Is the C9300X-48HX-M compatible with existing Meraki stacks?

You can stack up to eight C9300 or C9300X units as long as each switch is running the Meraki persona and the same firmware train.

What uplink modules are available?

Choose either a 2 × 40/100 G QSFP28 module for high-speed aggregation or an 8 × 1/10/25 G SFP28 module for flexible fibre connectivity. :contentReference[oaicite:13]{index=13}

How many 90 W ports can I power simultaneously?

Without StackPower, up to 36 ports can source 90 W; with StackPower enabled, up to 32 ports can source 90 W concurrently. :contentReference[oaicite:14]{index=14}

Licensing and Support

As an authorised Cisco Meraki reseller in Australia we provide transparent pricing on C9300X-48HX-M hardware, C9300X licence options and renewal bundles. Advanced replacement, firmware updates and 24 / 7 cloud support are included for the life of the licence, ensuring your switches stay secure and up-to-date.

Tools ChatGPT can make mistakes. OpenAI doesn't use Andrew Wilmot's Workspace workspace data to train its models.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-48HX-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
