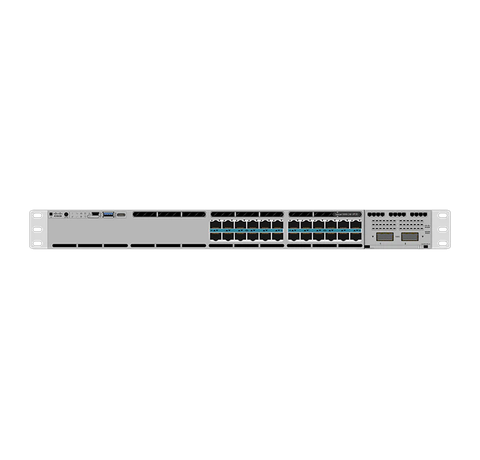

C9300X 24-port mGig UPoE+, 1100wac PS, w/MERAKI

$12,797.00 AUD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-24HX-M

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

Buy the Cisco Meraki C9300X-24HX-M to give your Australia-based office or retail network a future-proof, cloud-managed foundation. This 24-port multigigabit switch delivers 90 W UPoE+ per port, 1 Tbps stacking, and modular 40/100 G uplinks—all managed through the intuitive Meraki dashboard. Perfect for businesses that need secure, high-speed connectivity and simple at-scale operations from an authorised reseller.

Use Cases

High-density Wi-Fi 6/6E or Wi-Fi 7 access-point aggregation
Retail stores needing reliable PoE for POS, cameras, and signage
Corporate campus edge switch with zero-touch cloud provisioning
Branch sites requiring rapid deployment and centralised policy

Key Features

24 x 1/2.5/5/10 G mGig RJ-45 ports with 90 W UPoE+ on every port
Modular uplink slot supporting 2 x 40/100 G QSFP28 or 8 x 1/10/25 G SFP28
1 Tbps StackWise® bandwidth; stack up to eight C9300X switches
880 Gbps switching capacity and 327.38 Mpps forwarding rate
Adaptive Policy, NetFlow (IPFIX), and Encrypted Traffic Analytics with Advanced licence
Hot-swap dual power supplies and fans with StackPower shared power pool
Comprehensive Layer 3 routing, advanced QoS, and robust security features

Technical Specifications

Model: C9300X-24HX-M
Ports: 24 × UPoE+ multigigabit (1/2.5/5/10 G)
Switching Capacity: 880 Gbps
Stacking: 1 Tbps hardware, 480 Gbps backward-compatible
PoE Budget: 735 W (single PSU) / 1,835 W (dual PSU)
Dimensions (H × W × D): 44 × 445 × 524 mm
Weight: 6.25 kg
Operating Temp: –5 °C to 45 °C

Comparison

Model	User Ports	PoE Capability	Switching Capacity	Typical Use
C9300X-24HX-M	24 × mGig	90 W UPoE+	880 Gbps	Office / Retail edge
C9300X-24Y-M	24 × SFP28	N/A	2 Tbps	Fiber aggregation
C9300X-48HX-M	48 × mGig	90 W UPoE+	2 Tbps	Large-site PoE

FAQs

Is the switch truly cloud-managed?

Yes. All configuration, monitoring, and firmware updates are handled through the Meraki dashboard, eliminating the need for on-site controllers.

Can I mix C9300X-24HX-M with other C9300X models in a stack?

Absolutely. You can stack up to eight Catalyst 9300X units with a full 1 Tbps backplane.

What licences are available?

Enterprise and Advanced tiers are offered in 1, 3, 5, 7, and 10-year terms. Advanced adds Adaptive Policy, NetFlow, and ETA analytics.

Does the 24HX-M support 100 G uplinks?

Yes—install the C9300X-NM-2C-M module to unlock two 40/100 G QSFP28 uplink ports.

Licensing and Support

Every C9300X switch requires a Meraki software licence. Choose Enterprise for core Layer 3 and cloud-management features or Advanced for full security, analytics, and Adaptive Policy. All hardware is covered by Cisco’s limited lifetime warranty with next-business-day replacement, while optional Smart Net Total Care enhances 24×7 support and advance hardware replacement options.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-24HX-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
