C9300X 12x25GE SFP+, 715wac PS, w/MERAKI

$16,777.00 AUD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-12Y-M

Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

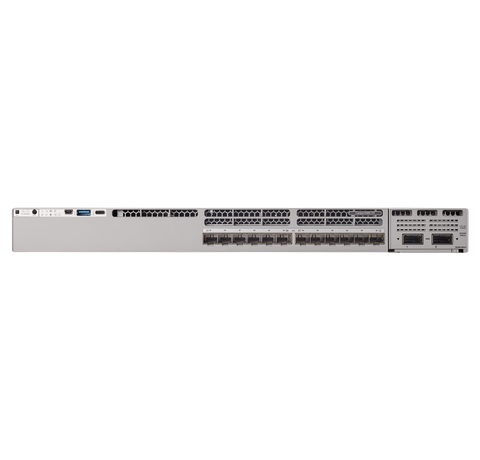

The Cisco Meraki C9300X-12Y-M is a 12-port, cloud-managed fibre switch designed for businesses that need high-speed aggregation without PoE. With 1 Tbps stacking, modular 10/25/40/100 Gb uplinks and Meraki Dashboard management, it delivers enterprise performance in offices, retail sites and branch networks across Australia. Buy with confidence from an authorised Cisco Meraki reseller and enjoy simple licensing, transparent pricing and local support.

Use Cases

Aggregation for Wi-Fi 6/6E access-point deployments in campuses or large offices
High-density fibre connectivity for retail or hospitality venues needing low-latency POS and CCTV traffic
Server / storage top-of-rack switch in compact data rooms where noise and footprint matter
Secure segmentation of IoT and guest devices via Adaptive Policy in distributed enterprises

Key Features

12 × 1/10/25 Gb SFP28 ports for flexible fibre links
1 Tbps dedicated hardware stacking (up to 8 switches)
Modular uplink slot – choose 8 × SFP28 (1/10/25 Gb) or 2 × QSFP28 (40/100 Gb)
Layer 3 routing (static, OSPFv2), multicast (PIM-SM) and VRRP warm-spare redundancy
Comprehensive security: 802.1X, MACsec (link-level), DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
Meraki Dashboard: zero-touch provisioning, remote packet capture, topology, and firmware scheduling
StackPower ring for shared PSU redundancy across up to four switches
Fan and PSU hot-swap; field-replaceable, front-to-back airflow

Technical Specifications

Switching capacity: 1 Tbps / 1000 Gbps
Forwarding rate: 744.04 Mpps
Stacking bandwidth: 1 Tbps (dual-ring) / 480 Gbps (legacy compatibility)
Latency: Sub-microsecond cut-through (store-and-forward on congestion)
Dimensions (H × W × D): 1.73″ × 17.5″ × 19.2″ (4.4 × 44.5 × 48.8 cm)
Weight: 6.8 kg / 15 lb (with default PSU)
Power: 715 W AC PSU; 97 W idle / 157 W max (switch only, no PoE)
Operating temperature: -5 °C to 45 °C
MTBF @ 25 °C: 265,650 hours
Noise: <45 dB (A) typical at 40 °C
Regulatory: FCC Class A, RCM, CE, RoHS-6

Comparison

Model	Ports & Media	Switching Capacity	Forwarding Rate	PoE/UPoE+	Ideal Scenario
C9300X-12Y-M	12 × 1/10/25 Gb SFP28	1 Tbps	744 Mpps	—	High-speed fibre aggregation
C9300X-24Y-M	24 × 1/10/25 Gb SFP28	2 Tbps	1488 Mpps	—	Larger fibre edge/core
C9300X-48TX-M	48 × 1/2.5/5/10 Gb mGig RJ-45	2 Tbps	1488 Mpps	No (data-only)	High-density copper access

FAQs

Does the C9300X-12Y-M support PoE or UPoE+?

No – the 12Y-M is a fibre-only model without PoE. If you need PoE, consider the C9300X-24HX-M or 48HX-M.

Can I mix this switch in a stack with other Catalyst 9300 models?

Yes. Mixed stacking is supported with Catalyst 9300 and other Catalyst 9300X versions using StackWise-1T cables.

What uplink module should I choose?

For 25 Gb aggregation, select the 8-port SFP28 module. For 40/100 Gb backbone links, choose the 2-port QSFP28 module.

How do I license the switch in Meraki Dashboard?

Purchase either the Catalyst 9300-M Enterprise or Advanced licence (1, 3, 5, 7 or 10 years). All Catalyst 9300/L/X-M devices in a co-term organisation must share the same licence tier.

Is pricing different for Australia?

Yes. Regional pricing and GST apply. Contact our team for Australia-specific quotes and lead times.

Licensing and Support

All Catalyst 9300X-M switches require an active Meraki licence (Enterprise or Advanced) that unlocks features such as Adaptive Policy, NetFlow v10 and automatic firmware updates. As an authorised Cisco Meraki reseller, we provide flexible licence terms, local RMA handling, and 24×7 technical assistance to keep your network running smoothly.

Buy from an Authorised Cisco Meraki Reseller in Australia

Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-12Y-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
