Cisco Meraki

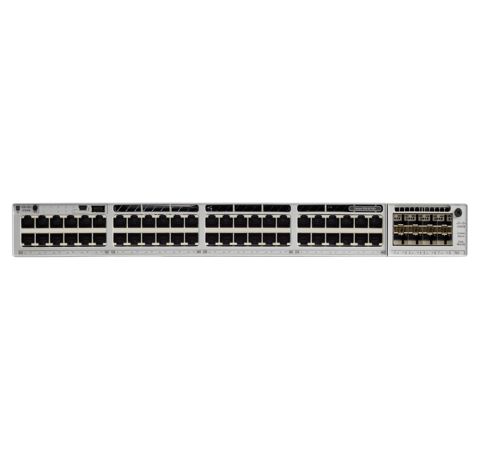

C9300-M 48x1GE SFP, 715wac PS, w/MERAKI
C9300-M 48x1GE SFP, 715wac PS, w/MERAKI
SKU:C9300-48S-M
Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
Looking to buy Cisco Meraki C9300-48S-M for your business? This 48-port fibre aggregation switch blends proven Catalyst hardware with Meraki’s cloud-managed network intelligence, delivering high throughput, rock-solid reliability, and zero-touch deployment for Australian office and retail environments. As an authorised reseller, we outline the key specifications, comparison, pricing insights and licensing so you can choose the right C9300 license tier with confidence.
Use Cases
- High-density fibre access layer for campus or branch backbones.
- Secure multi-gigabit aggregation for large office workgroups.
- Point-of-sale and device segmentation in retail sites.
- Cloud-managed roll-outs across distributed locations.
Key Features
- 48 × 1 Gb SFP ports with modular 40 G / 25 G / 10 G uplink options.
- 256 Gbps switching fabric & 480 Gbps hardware stacking (dual 120 G stack ports, up to 8 switches).
- Meraki Dashboard management: zero-touch provisioning, real-time monitoring, scheduled upgrades.
- Adaptive Policy micro-segmentation & NetFlow v10 traffic analytics.
- Hot-swappable fans plus dual-redundant, field-replaceable power supplies.
- Energy-efficient design – 88.9 W idle / 158.3 W max draw.
Technical Specifications
- Ports: 48 × 1 G SFP; 2 × modular uplink slots (SFP28/QSFP+).
- Throughput: 256 Gbps switching capacity; 190.5 Mpps forwarding rate.
- Stacking: 480 Gbps bandwidth; up to 8 members.
- Layer 3: Static routing, OSPFv2, VRRP warm-standby.
- Memory: 32 K MAC entries; 4,094 VLANs (1,000 active with STP).
- Default PSU: PWR-C1-715WAC-P-M (hot-swap supported).
- Dimensions / Weight: 1.73 in H × 17.5 in W × 19.2 in D; 17.32 lb (7.86 kg).
- Environment: –5 °C to 45 °C operating; 5 %–90 % RH.
Comparison
| Model | Port Type | PoE | Switching Capacity | Ideal Deployment |
|---|---|---|---|---|
| C9300-48S-M | 48 × 1 G SFP | None | 256 Gbps | Fibre aggregation & secure campus core |
| C9300-48T-M | 48 × 1 G RJ45 | None | 256 Gbps | High-density copper access |
| C9300-48P-M | 48 × 1 G RJ45 | PoE+ (437 W) | 256 Gbps | IP phones & powered devices |
FAQs
Which Catalyst 9300 license tiers work with the C9300-48S-M?
The switch accepts either Enterprise or Advanced Catalyst 9300-M licenses, available in 1, 3, 5, 7, or 10-year terms. Advanced adds Adaptive Policy and enhanced telemetry.
Can I stack this model with other Catalyst 9300-M switches?
Yes. Up to eight C9300-M family switches (mix-and-match models) can be hardware-stacked using 120 G stack ports for a 480 G ring.
Does the C9300-48S-M provide PoE or UPoE?
No. The 48S-M is a fibre-only model with no PoE power delivery. For PoE+, choose the C9300-48P-M; for UPoE, the C9300-48U-M.
Are 25 G uplinks supported out-of-the-box?
25 G SFP28 modules are supported with the C9300-NM-2Y-M uplink and require firmware CS16.7 or later.
Licensing and Support
Every Cisco Meraki C9300-48S-M switch must be paired with an appropriate C9300 license to enable cloud management, firmware updates, and 24×7 enterprise-grade technical support. Our team can advise on the right tier, term, and pricing for Australia, and streamline activation so your network goes live without delays.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single MS350 unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
