Cisco Meraki
C9300-M 24-port UPOE, 1100wac PS, w/MERAKI
C9300-M 24-port UPOE, 1100wac PS, w/MERAKI
SKU:C9300-24U-M
Note: License must be purchased with product and does not ship with an AU Power Cord unless ordered in addition to the device.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary

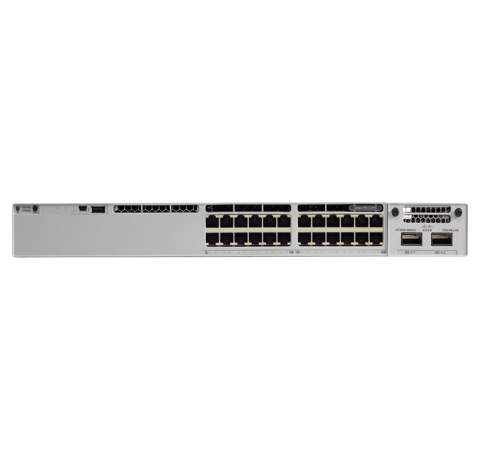

The Cisco Meraki Catalyst C9300-24U-M is a 24-port, cloud-managed access switch that pairs enterprise-grade performance with Meraki’s intuitive dashboard. Ideal for business, office, and retail environments, it delivers full-power UPoE, high-speed modular uplinks, and 480 Gbps stacking—helping Australian organisations scale quickly while keeping operations simple. Buy from an authorised reseller to secure the right License, local support, and competitive pricing.
Use Cases
- Branch or campus edge where reliable 1 GbE connectivity and UPoE power (60 W per port) are required.
- Retail stores needing cloud-managed networking with zero-touch deployment and remote troubleshooting.
- Corporate offices consolidating IoT sensors, Wi-Fi 6/6E access points, and surveillance cameras onto one switch.
- Businesses migrating to a Meraki dashboard while retaining flexibility for modular 10/25/40 G uplinks.
Key Features
- 24 × 1 GbE copper ports with UPoE (60 W per port, 830 W budget standard).
- Two modular uplink slots (supporting 10, 25 or 40 Gb fibre modules).
- Dual 120 Gb hardware stacking ports; up to 480 Gbps stack bandwidth for eight-switch stacks.
- 208 Gbps switching capacity with wire-speed Layer 3 routing.
- Adaptive Policy, Encrypted Traffic Analytics, and NetFlow v10 for deep visibility and segmentation.
- StackPower power-sharing ring for resilient PSU pooling.
- Zero-touch provisioning, scheduled firmware upgrades, and detailed per-port analytics via the Meraki dashboard.
Technical Specifications
- Model: C9300-24U-M (cloud-managed persona)
- Ports: 24 × 1 GbE RJ-45 data + UPoE
- Switching Capacity: 208 Gbps | Forwarding Rate: 154.76 Mpps
- Stacking: 480 Gbps bandwidth; up to 8 members
- Default PSU: 1100 W AC (hot-swap, redundant-ready)
- PoE Budget: 830 W (1440 W with secondary PSU)
- Dimensions (H × W × D): 1.73 × 17.5 × 19.2 in (4.4 × 44.5 × 44.8 cm)
- Weight: 16.63 lb (7.54 kg)
- Operating Temp: -5 °C to 45 °C | Humidity: 5 – 90 %
- Mean Time Between Failures (MTBF): ≈ 238,410 hours
Comparison
| Model | Port Type | PoE Support | Switching Capacity | Stack Bandwidth | Best Fit |
|---|---|---|---|---|---|
| C9300-24T-M | 24 × 1 GbE | N/A (data-only) | 208 Gbps | 480 Gbps | Data-centric deployments |
| C9300-24P-M | 24 × 1 GbE | PoE+ (30 W/port) | 208 Gbps | 480 Gbps | Standard IP phones / APs |
| C9300-24U-M | 24 × 1 GbE | UPoE (60 W/port) | 208 Gbps | 480 Gbps | High-power IoT & Wi-Fi 6E |
| C9300-24UX-M | 24 × mGig (1/2.5/5/10 G) | UPoE (60 W/port) | 640 Gbps | 480 Gbps | Future-proof multigig |
FAQs
Do I need a license to operate the C9300-24U-M?
Yes. Every unit requires an Enterprise or Advanced Catalyst 9300-M License (1, 3, 5, 7, or 10 years) to access the Meraki dashboard and feature set.
Which uplink modules are compatible?
The switch has two modular slots that accept 10 G, 25 G (SFP28), or 40 G (QSFP+) Meraki uplink modules, giving you flexibility as bandwidth needs grow.
How many switches can I stack?
Up to eight Catalyst 9300-M switches can form a single stack, delivering up to 480 Gbps of stack bandwidth and unified management.
What is the difference between UPoE and PoE+?
UPoE supplies up to 60 W per port—double the 30 W ceiling of PoE+—allowing the switch to power devices such as multi-radio Wi-Fi 6E access points, digital signage, or thin clients without external adapters.
Licensing and Support
As an authorised Cisco Meraki reseller in Australia, we offer transparent comparison and pricing guidance to help you choose the right Enterprise or Advanced license tier. All Catalyst 9300-M switches ship with a limited lifetime hardware warranty, next-business-day replacement, and 24 × 7 Meraki cloud support—so your business network stays protected long after purchase.
Buy from an Authorised Cisco Meraki Reseller in Australia
Cloudifi is a certified Cisco authorised reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300-24U-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in Australia.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
